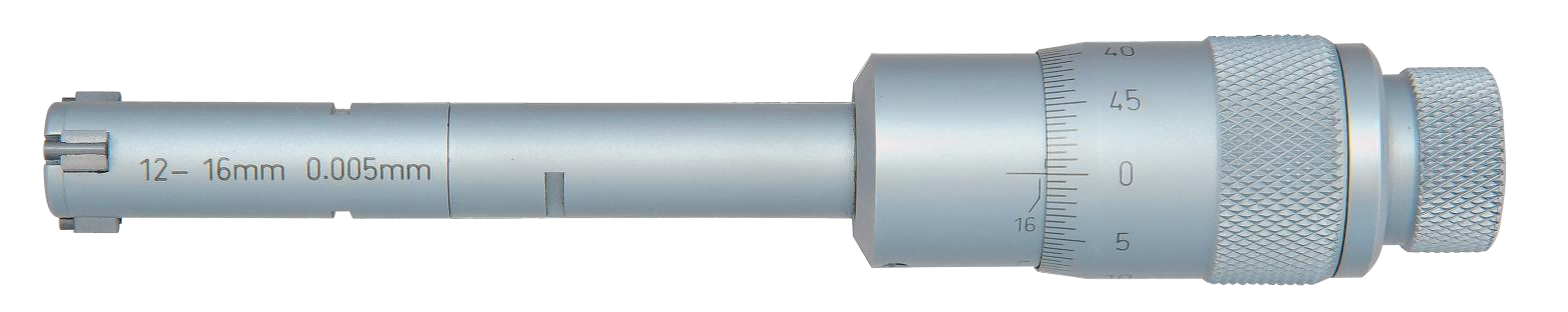

內徑千分尺
適用於盲孔和通孔的精密測量。
硬質合金測量麵（不包括6-12mm）。
棘輪測力。

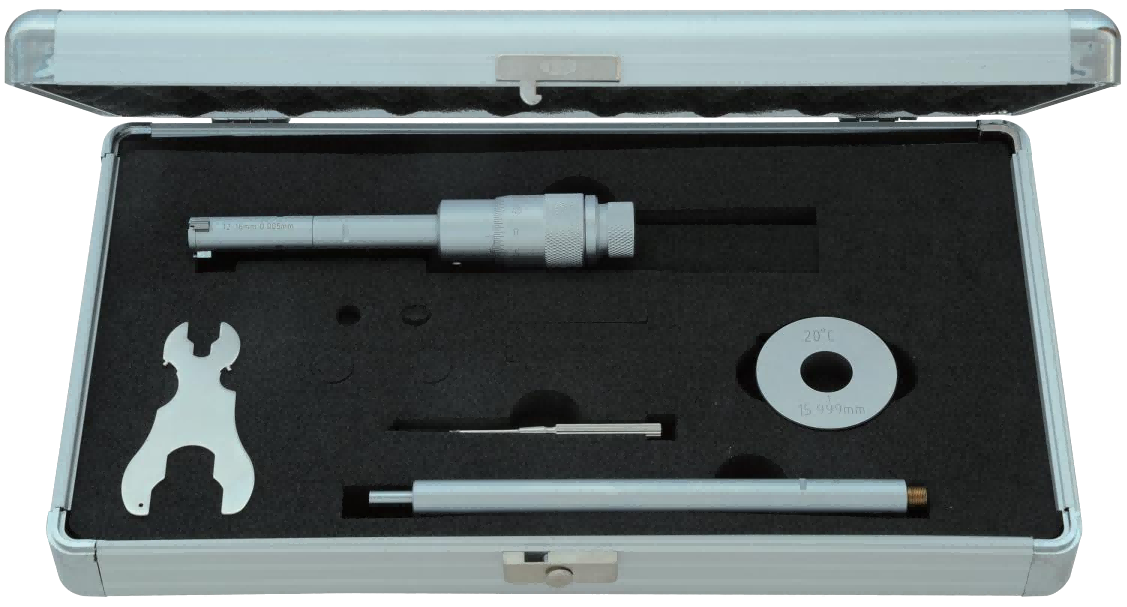

配有校對環規。
分辨力：測量範圍12mm以內0.001mm。 測量範圍12mm以上0.005mm。

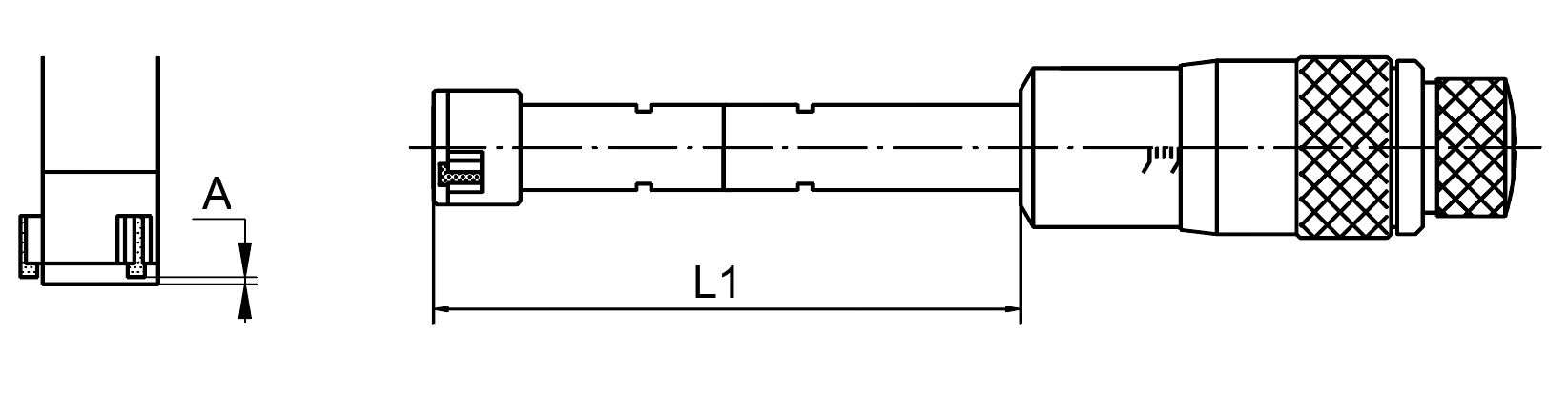

| 貨號 | 測量範圍 | 精度 | 校對環規 | L1 | A | 接長杆 |
|---|---|---|---|---|---|---|
| 外表麵鍍鉻 | ||||||
| 315-01-110 | 6-8mm | 0.004mm | Φ6mm | 54.5mm | 1.5mm | 100mm |
| 315-02-110 | 8-10mm | 0.004mm | Φ8mm | 54.5mm | 1.5mm | 100mm |
| 315-03-110 | 10-12mm | 0.004mm | Φ10mm | 54.5mm | 1.5mm | 100mm |
| 315-04-070 | 12-16mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 315-05-070 | 16-20mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 315-06-070 | 20-25mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 315-07-070 | 25-30mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 315-08-070 | 30-40mm | 0.004mm | Φ40mm | 97mm | 0.5mm | 150mm |
| 315-09-070 | 40-50mm | 0.005mm | Φ40mm | 97mm | 0.5mm | 150mm |
